UV Masa üstü hızlandırılmış yaşlandırma kabini

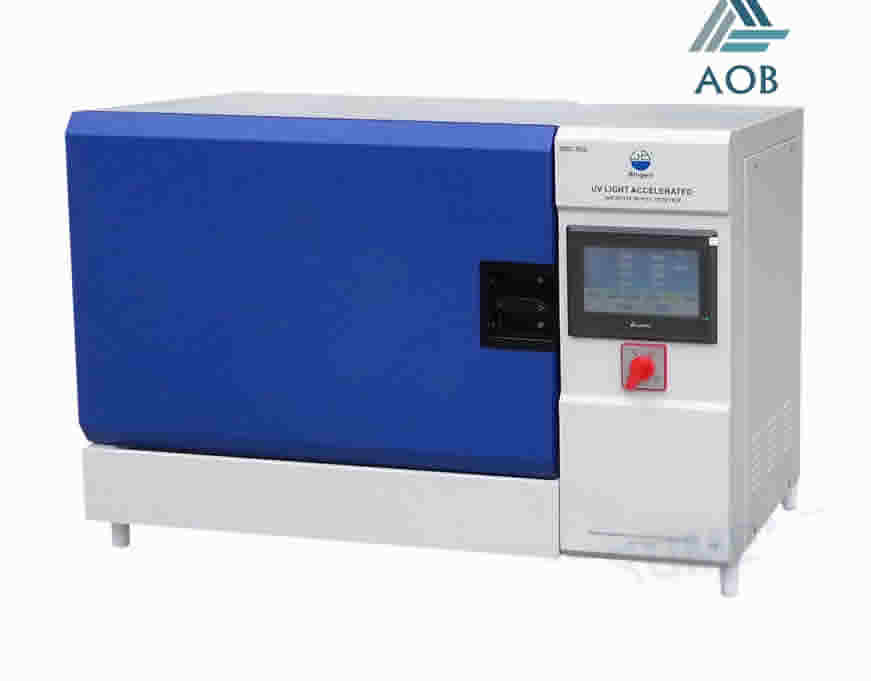

  BGD 852 Bench UV light Accelerated Aging Chamber is an economic and easy-to-use  machine which can meet some customers’requirements. It is equipped with 3 pcs 20W UV lamps as light sources. Operatorcan set the total illumination time, temperature, spray time etc to simulatethe natural environment which would cause the damaged factor to samples.

      This chamber can isolate 18 pcs standard panels （Size is 150×70mm）. Samples are installed a column form rotating sample rack.During the test, the sample rack rotate uniformly and ensure every sample getthe same irradiance energy, increase the compariability and repeatability oftesting results.

Features：

◆Touch screen and user-friendly operation interface allow handlers set the test parameters and monitor all the test process easily.

◆ Equipped with professional UV lamps who has high irradiance energy: 0.70W/m² for UVB and  0.40W/m² for UVA

◆ Full stainless steel inner working room with sandwich design, never getting rusty and leakage. Also prevent water vapour coming from working room from entering electrical box and damaging electron components.

◆ Biult-in water level switch, it will alarm and stop running automatically when under low water level.

Main Technical Parameters

■ Total power：1.2 KW

■ Power voltage：220±22V/50±0.5Hz

■ Setable temperature range of working room：RT+5℃～60℃

■ Setable range of test time：1h～9,999h

■  Setable range of spray time ：1min-9,999min

■  Setable range of spray interval time  ：1min-9,999min

■ Rated life oflamp：1,600h

■ Wave length of lamps ：313 nm （UVA Lamps） or 340 nm （UVB Lamps）

■ Lamp power：3 pcs ; eachlamp is 20 W

■ Spray water ：2L/min

■ Capacity for test panels：18 pcs standardsize panels

■ Specification of sample：150mm×70mm

■ Cabinet Size：930×450×630mm（L×D×H）

■ Net Weight：63kg

■ Ordering Information：

   BGD 852--- Bench UV  Light Accelerated Aging Test Chamber

   BGD8100 ---UVB lamps (20W/313nm)

  BGD 8101---UVA lamps (20W/340nm)
