Specifications
|

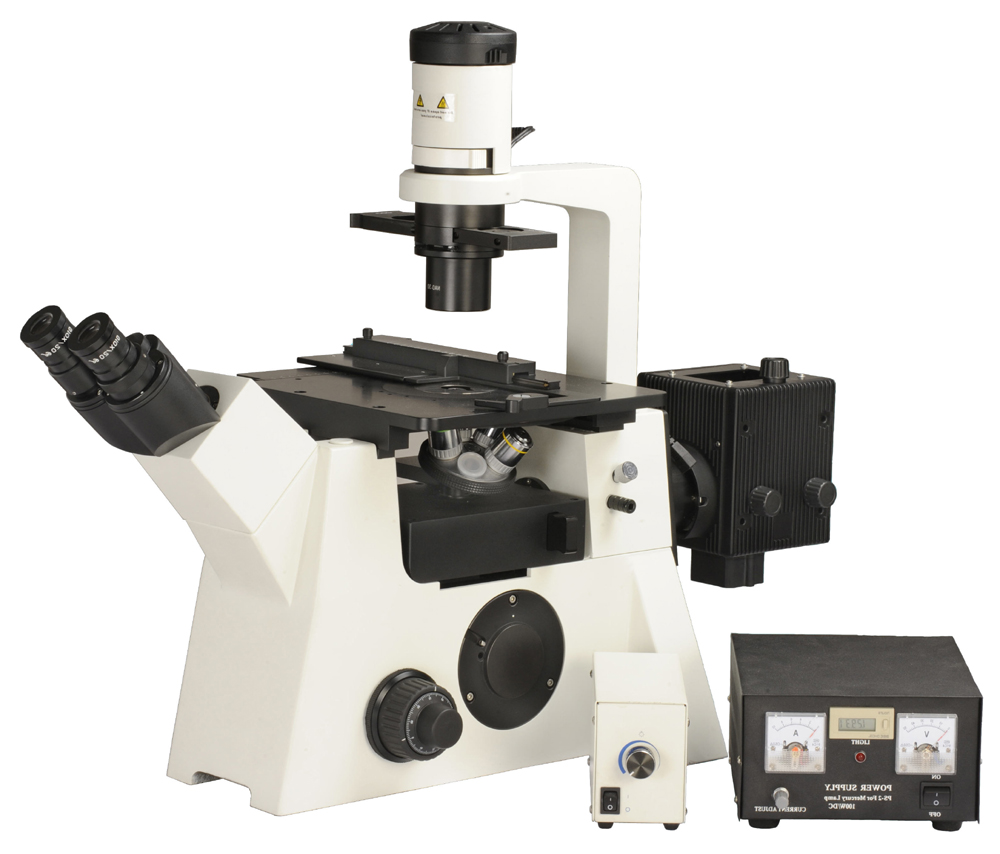

XJF500
|
|
Optical System
|
Infinity Optical System F=200mm
|
s
|
|
Viewing Head
|
Siedentopf trinocular head, interpupillary distance 52~75mm, 45°inclined,diopter adjustable
|
s
|
|
Eyepiece
|
WF10X/20mm, High eye-point up to 21mm
|
ss
|
|
WF10X/22mm, High eye-point up to 21mm
|
o
|
|
WF16X/14mm
|
o
|
|
WF10X/20mm (Pointer), High eye-point up to 21mm
|
o
|
|
WF10X/22mm (Pointer), High eye-point up to 21mm
|
o
|
|
WF10X/20mm (Reticule), High eye-point up to 21mm
|
s
|
WF10X/22mm (Reticule), High eye-point up to 21mm
|
o
|
|
Nosepiece
|
Quintuple
|
s
|
|
Long Work-distance Objectives
|
Plan Achromatic 4X/0.13 WD=12.86mm
|
o
|
|
Plan Achromatic 10X/0.25 WD=9.67mm
|
s
|
|
Plan Achromatic 20X/0.40 WD=7.97mm
|
s
|
|
Plan Achromatic 40X/0.60 WD=3.76mm
|
s
|
|
Positive Phase-Contrast Objevtives
|
Plan Achromatic 10X/0.25 WD=9.67mm
|
o
|
|
Plan Achromatic 20X/0.40 WD=7.97mm
|
s
|
|
Plan Achromatic 40X/0.60 WD=3.76mm
|
o
|
|
Negative Phase-Contrast Objectives
|
Plan Achromatic 10X/0.25 WD=9.67mm
|
o
|
|
Plan Achromatic 20X/0.40 WD=7.97mm
|
o
|
|
Plan Achromatic 40X/0.60 WD=3.76mm
|
o
|
|
Stage
|
Fixed stage: 240×260mm, low-position co-axial flexible adjusting handle, travel: 135×85mm
|
s
|
|
Slide Plate(?118mm), replaceable
|
s
|
|
Slide Plate(76×26mm, ?60), replaceable
|
s
|
|
Mechanical stage: 350×208mm, X/Y travel: 50×50mm, low-positioned co-axial flexible adjusting handle.
|
o
|
Transmitted light Illumination
|
72mm extreme long work distance condenser, NA=0.3, with iris diaphragm, 6V 30W halogen lamp house, filter jack
|
s
|
|
Phase-contrast slide, makes it easy to change between 10X, 20X, 40X phase-contrast and brightfield observation.
|
s
|
|
6V 30W Osram halogen lamp
|
s
|
|
External power, wide voltage (100V / 240V)
|
s
|
|
Fuse tube: 250V 3.15A ?5×20
|
s
|
|
Blue filter (?34)
|
s
|
|
Green filter (?34)
|
s
|
|
Yellow filter (34)
|
s
|
|
Nosepiece
|
Quintuple, Inward facing.
|
s
|
|
C-Mount
|
1X
|
o
|
|
0.5X
|
s
|
|
0.25X (Fit 1/3"CCD)
|
o
|
|
Digital Camera Joint
|
(Please advice your digital camera brand and model in advance)
|
o
|
|
Reflected Flourescence Attachment
|
DC Hg Fluorecence lamphouse 100W
|
s
|
|
Mercury lamp 100W
|
s
|
|
Mercury lamp 100W (Osram)
|
o
|
|
Filter turret
|
s
|
|
Iris aperture adjusting handle
|
s
|
|
DC Hg Power source house 100W
|
s
|
|
Fuse tube: 250V 5A ?5×20
|
s
|
|
UV Excitaion Filter (I Grade, imported)
|
o
|
|
V Excitation Filter (I-Grade,imported)
|
o
|
|
B Excitation Filter (I-Grade,imported)
|
o
|
|
G Excitation Filter (I-Grade,imported)
|
o
|
|
UV Excitaion Filter (C-Grade,made in China)
|
o
|
|
V Excitation Filter (C-Grade,made in China)
|
o
|
|
B Excitation Filter (C-Grade,made in China)
|
|
|
G Excitation Filter (C-Grade,made in China)
|
|
|
Dust Cover
|
|
s
|
|
Operation Manual
|
|
s
|
|
Allen Screw Driver
|
?2mm
|
s
|
|
?2.5mm
|
s
|
|
?3mm
|
s
|
|
Power Wire
|
CE Certified
|
s
|
|
Package
|
Inner: Foam, Plastic Bag;
Outer: Carton
|
