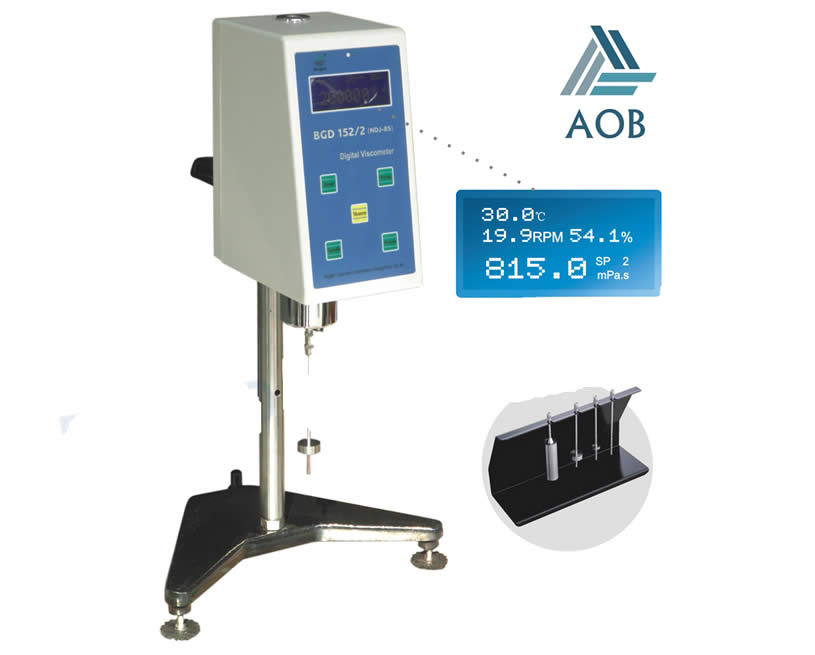

BGD 152 Digital Rotary Viscometers are a type of intelligent instrument for testing liquid viscosity. They can complete testing work under the computer’s procedures and displays results on their LCD display. They use a MCS-51 series computer to constantly control the rotation speed and all the testing procedures. This makes them a highly precise instrument. They are widely applied in the field of petri chemistry, medicine, food, light industry, textile industry, scientific research, etc.
Main Technical Parameters：
■ Rotors to be used to measure：four rotors of NO.1-4
■ Rotate speed：
6r/min,12r/min,30r/min,60r/min----For BGD 152/1
0.3 r/min , 0.6 r/min,1.5 r/min,3r/min, 6r/min,12r/min,30r/min,60r/min—For BGD 152/2
■ Meterage error： ±5%（Newtonian fluids）
■ Electrical power：：220V/50Hz
■ Weight：10Kg
■ Dimensions：308mm×300mm×450mm. （L×W×H）
■ Others：Direct Digital display（rotate speed, the type of rotors, results）
■ Ordering Information：
BGD 152/1--- Digital Rotary Viscometer（10-100,000mPa.s）
BGD 152/2--- Digital Rotary Viscometer（10-2,000,000mPa.s）
|
