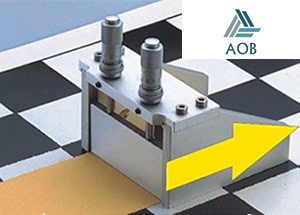

The blade of this applicator can be accurately adjusted by means of 2 micrometric screws, from 0 to 8 mm, in 10µm increment. Suitable for various precision tests, e.g. research tasks. 4 widths available.
Main Technical Parameters
Ordering Information →
Technical Parameters ↓
|
BGD 209/1
|
BGD 209/2
|
BGD 209/3
|
BGD 209/4
|
Blade width(Wet film width)
|
50mm
|
100mm
|
150mm
|
200mm
|
Setting scope
|
0~3,500µm
|
0~5,000µm
|
0~5,000µm
|
0~5,000µm
|
Precision
|
10µm
|
10µm
|
10µm
|
10µm
|
|
|
