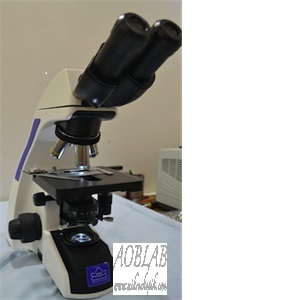

AOB SF MIC1000 Binoküler Mikroskop LED-Plan Achromat |
|
|
Rutin Laboratuvar ve Araştırma Kullanımlarında İdealdir.Binoküler Başlık,Objektifler;PA 4x,10x,40x,100x,Okuler;WF.10x 22 mm, Aydınlatma;LED,Toplam Büyütme;40x-1000x |
|
Optical System |
Finite Optical System |
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30º Interpupillary 48mm-75mm |
Eyepiece |
Wide Field Eyepiece WF10X/F.N.22mm |
|
Wide Field Eyepiece WF16X/F.N.15mm |
Optional Eyepiece |
Wide Field Eyepiece WF20X/F.N.12mm |
|
Backward Quadruple Nosepiece |
Nosepiece |
Backward Quintuple Nosepiece(Optional) |
Objective |
Finite Achromatic Plan Objectives 4X 10X 40X 100X |
Condenser |
Abbe Condenser NA1.25 with Diaphragm |
Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving range 24mm |
Stage |
Double Layer Mechanical Stage 142x132mm , Moving Range75mmx50mm |
Illumination |
External Illumination, 3W/LED |
|
Optional Accessory |
Seidentopf Trinocular Viewing Head |
Trinocular Adaptor |
Product Size |
|
Packing&Size |
Foam and carton 370x320x510mm |
G.W. |
8.00kgs |
|
