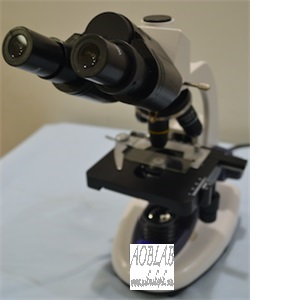

| AOB SF MIC-B30/T Trinoküler Öğrenci Lab.Mikroskop LED Achromat (1x C-mound) |
|
|
Öğrenciler için özellikle uygunluk gösteren ve kolayca kullanılabilen bu ürün Trinoküler Başlık, to 1600X mag,, N.A.1.25 kondenser, 1W (3W)LED, 195 Achromatic objektif 4X, 10X, 40X, 100X, |
|
|
MIC-B30 serials Biological microscope technical specification
|
|
Technical specification
|
Model
|
|
|
|
MIC-B30-T
|
|
|
Total magnification: 40X～1600X
|
|
Viewing head
|
monocular head: 30° inclined
|
|
|
○
|
|
|
articulated binocular head,30°inclined,360° rotated
|
|
|
○
|
|
|
articulated trinocular head,30°inclined,360° rotated
|
|
|
●
|
|
|
articulated trinocular head,30°inclined,360° rotated, teaching head
|
|
|
○
|
|
|
Eyepiece
|
wile-field eyepiece :WF10X/18mm
|
|
|
●●
|
|
|
wild-field eyepiece :WF16X/15mm
|
|
|
○
|
|
|
Nosepiece
|
revolving quadruple nosepiece
|
|
|
●
|
|
|
Objective
|
195 achromatic objectives:4X,10X,40X（S）,100（O,S）
|
|
|
●
|
|
|
195 achromatic plan objectives:4X,10X,40X（S）,100（O,S）
|
|
|
○
|
|
|
Mechanical stage
|
115x125mmdouble layer mechanical stage, moving range76mm(X)x50mm（Y）with double section clamp
|
|
|
●
|
|
|
Focusing
|
Coaxial focus system with upper limited and tension adjustment; coarse adjustment range:20mm, fine adjustment precision:0.002mm
|
|
|
●
|
|
|
Condenser
|
N.A.1.25condenser
|
|
|
●
|
|
|
Illumination
|
1W LED illumination, brightness adjustable or 6V/20W, 6V/30W halogen lamp
or 3W LED
|
|
|
●
|
|
|
Filter
|
yellow, green, blue, neutral color filter
|
|
|
●
|
|
|
