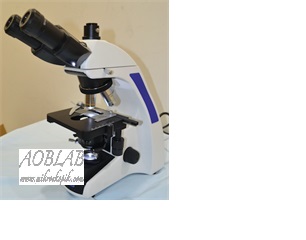

MIC-1000 Biological Microscope Infinite High Contrast Chromatic-free Full Plan Objectives |
Optical System |
Infinite Optical System |
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30º Interpupillary 48mm-75mm |
Eyepiece |
Wide Field Eyepiece WF10X/F.N.22mm |
Optional Eyepiece |
Wide Field Eyepiece WF16X/F.N.15mm(Optional) |
Wide Field Eyepiece WF20X/F.N.12mm(Optional) |
Nosepiece |
Backward Quadruple Nosepiece |
Backward Quintuple Nosepiece(Optional) |
Objective |
Infinite High Contrast Chromatic-free Full Plan Objectives 4X 10X 40X 100X |
Condenser |
NA1.25 |
Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving range 24mm |
Stage |
Double Layer Mechanical Stage 216x150mm , Graphite Surface, Moving Range75mmx55mm |
Kohler Illumination |
External Illumination, 3W/LED |
|
Optional Accessory |
Seidentopf Trinocular Viewing Head |
C Mount 0.5X |
Dark Field Attachment |
Phase Contrast Attachment |
|
|
Product Size |
|
Packing&Size |
Foam and carton box: 370x320x510mm |
G.W. |
8.5kgs |
